5.4L SOHC 24-VALVE V8 FFV ENGINE

• (STD)

• Equipment Group 301A
• 3.73 Axle Ratio
• GVWR: 7,540 lbs Payload Package
• 18" Machined-Aluminum Wheels
• 20" Polished-Aluminum Wheels
• Heated & Cooled Perforated Leather Fr Bucket Seats
• 2nd Row Bucket Seats
• Radio: Premium Sound System w/Single-CD/MP3 Player
• Radio: Voice-Activated Navigation w/HD Radio
• SYNC
• Power Moonroof
• Power Running Boards
• License Plate Bracket
• All-Weather Floor Mats (RPO)
• Dual-Headrest DVD by Invision (Pre-Installed)
• Power Code Remote Start (Pre-Installed)
• SiriusXM Satellite Radio
• Subwoofer
• 4-Wheel Disc Brakes
• Exterior Parking Camera Rear
• AM/FM radio: SiriusXM
• Compass
• 7 Speakers
• Speed-Sensitive Wipers
• Auto-dimming Rear-View mirror
• Front beverage holders
• Ventilated front seats
• Variably intermittent wipers
• Turn signal indicator mirrors
• Trip computer
• Traction control
• Tilt steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed-sensing steering
• Speed control
• Security system
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear reading lights
• Rear audio controls
• Rear anti-roll bar
• Rear air conditioning
• Rain sensing wipers
• Radio data system
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Pedal memory
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Memory seat
• Low tire pressure warning
• Leather steering wheel
• Illuminated entry
• Heated rear seats
• Heated front seats
• Heated door mirrors
• Garage door transmitter
• Fully automatic headlights
• Front reading lights
• Front fog lights
• Front dual zone A/C
• Front anti-roll bar
• Four wheel independent suspension
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• Brake assist
• Automatic temperature control
• Auto-dimming door mirrors
• Alloy wheels
• Adjustable pedals
• ABS brakes
• 3rd row seats: split-bench
• Voltmeter
• Tachometer
• Roof rack
• Power Liftgate
• Leather Shift Knob
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: 2250
• Cooling System
• Total Cooling System Capacity (qts): 20.600
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 4250
• Curb Weight - Front (lbs): 2922
• Curb Weight - Rear (lbs): 2922
• Gross Vehicle Weight Rating Cap (lbs): 7540
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1335
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): 3500
• Spring Capacity - Rear (lbs): 4250
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3500
• Axle Capacity - Rear (lbs): 4250
• Axle Ratio (:1) - Rear: 3.730
• Shock Absorber Diameter - Front (mm): 34.900
• Shock Absorber Diameter - Rear (mm): 34.900
• Stabilizer Bar Diameter - Front (in): 1.417
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.503 x 1.338
• Rear Brake Rotor Diam x Thickness (in): 13.169 x 0.866
• Tires
• Front Tire Size: P275/65R18
• Rear Tire Size: P275/65R18
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.000
• Turning Diameter - Curb to Curb (ft): 43.930
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.500
• Fuel Tank Location: Midship
• Doors
• Side Door Type: - TBD -
• Exterior Dimensions
• Wheelbase (in): 131.000
• Length, Overall w/rear bumper (in): 221.300
• Width, Max w/o mirrors (in): 78.800
• Height, Overall (in): 77.700
• Overhang, Front (in): 39.200
• Overhang, Rear w/bumper (in): 51.100
• Ground to Top of Load Floor (in): 35.300
• Ground Clearance, Front (in): 8.700
• Ground Clearance, Rear (in): 8.700
• Rear Door Opening Height (in): 34.100
• Rear Door Opening Width (in): 56.700
• Side Door Opening Height (in): - TBD -
• Side Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 98.300
• Cargo Area Length @ Floor to Seat 2 (in): 60.200
• Cargo Area Length @ Floor to Seat 3 (in): 28.900
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.400
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 130.800
• Cargo Volume to Seat 2 (ft³): 85.500
• Cargo Volume to Seat 3 (ft³): 42.600
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 39.500
• Front Leg Room (in): 41.100
• Front Shoulder Room (in): 63.200
• Front Hip Room (in): 60.200
• Second Head Room (in): 39.700
• Second Leg Room (in): 39.100
• Second Shoulder Room (in): 63.700
• Second Hip Room (in): 59.900
• Third Head Room (in): 38.000
• Third Leg Room (in): 37.700
• Third Shoulder Room (in): 67.100
• Third Hip Room (in): 51.800
• Summary

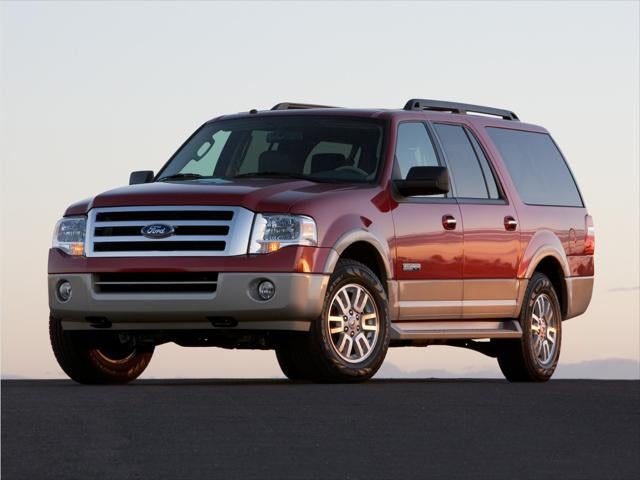

• Vehicle Name: Ford Expedition EL
• Body Style: Sport Utility
• Body Code: 131" WB
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.5
